Deep Pleat HEPA Filter Grade E10, E11, E12, H14 to EN1822

Deep Pleat HEPA Filters are used to achieve up to H14 fine air filtration, the highest levels of air quality for uses in operating theaters, electronics, pharmaceuticals, research facilities and micro biological laboratories.

The Deep Pleat is a retro style filter most commonly bought as a replacement for existing systems with Deep Pleats HEPAs installed, with mini pleat panel HEPAs being the standard for HEPA grade terminal and cassettes.

Categories: ,
Call for Trade Prices
01277 523 655
Delivery across mainland uk

What size is your Deep Pleat HEPA?


If you don't know a section, leave it blank and we can help, or Click Here to get in contact.

Applications of Deep Pleat HEPA Filters

Deep Pleat HEPA Filters are used to achieve the highest levels of fine air filtration and air quality, up to H14 to EN1822. HEPA Filters are used in operating theaters, electronics, pharmaceuticals, research facilities and micro biological laboratories.

Deep Pleat style HEPAs are a retro style filter which are fragile, therefore protected by pre filters of around grade F7 to EN1822 to maintain a longer life span.

Construction of HEPA Filters

HEPA filters Deep Pleated are constructed out of a glass fibre paper pack, which is pleated to the depth of the filter and spaced with pleated aluminium or kraft paper spacers. The glass fibre paper pack secured within a metal or wooden case, with gasket available for the ‘air on’ side to ensure a tight seal.

Deep Pleat Alternatives

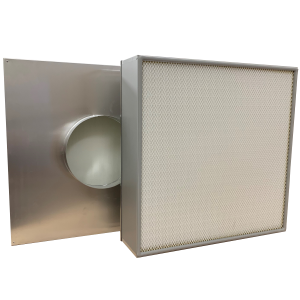

Hepa Terminal Cassette for h14 Mini Pleat Panel air filter
Mini Pleat HEPA Filter

Mini Pleat Panel HEPA filters thinner alternatives to the deep pleats. Mini Pleat HEPAs are used in HEPA Terminals and Cassettes.

Technical

Grade Overall Efficiency Local Value Efficiency Suggested for ISO 14644:1999
E11 95%
H12 99.5% ISO Class 8
H13 99.95% 99.75% ISO Class 6
H14 99.995% 99.975% ISO Class 5
U15 99.9995% 99.9975% ISO Class 4
